0.49 Inch 64x32 Pixels Monochrome OLED Display
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
0.49 Inch Monochrome OLED Display
,0.49 Inch 64x32 oled
,Mini Size Monochrome OLED Display

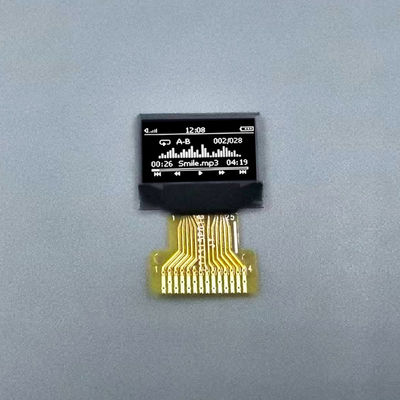

0.49 Inch 64x32 Monochrome OLED Display 4Wire SPI IIC White Color
LIMITO OLED Description:
QG-6432TSWBG02 OLED Display Module is a 64x32 resolution COG graphic display, with a diagonal size of 0.49 inch. The OLED model is designed as an industrial grade, which has the advantage of a competitive price. The module is built-in with ST7315 IC; it supports IIC interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating Current for VDD is 180μA, driving duty 1/32.
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-6432TSWBG02 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/32 Duty |
| Number of Pixels: | 64*32 |
| Panel Size: | 14.5*11.6*1.22(mm) |
| Active Area: | 11.18*5.58 (mm) |
| Pixel Pitch: | 0.175*0.175 (mm) |
| Pixel Size: | 0.155*0.155(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
