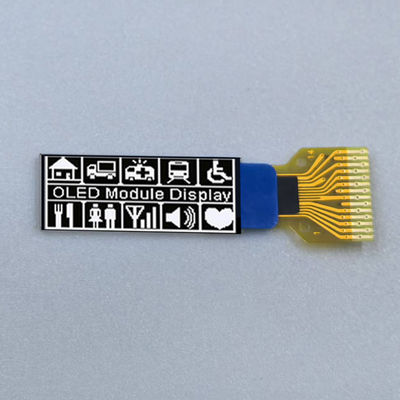

0.54 Inch Monochrome OLED Display 96X32 I2c Interface 14pins Driving SSD1312
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
0.54 Inch Monochrome OLED Display
,0.54 Inch i2c oled display
,SSD1312 Monochrome OLED Display
0.54 Inch OLED Display 96X32 Resolution I2c Interface 14pins Driving SSD1312
LIMITO OLED Description:
One advantage of OLED displays is that each pixel emits its own light, allowing for precise control over individual pixels. When displaying predominantly dark content or black backgrounds, OLED pixels can be turned off, resulting in minimal power consumption for those pixels. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-9632TSWAG01 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/32 Duty |
| Number of Pixels: | 96*32 |
| Panel Size: | 18.52*7.04*1.22(mm) |
| Active Area: | 12.46*4.14 (mm) |
| Pixel Pitch: | 0.13*0.13(mm) |
| Pixel Size: | 0.11*0.11(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
