0.63 Inch Monochrome OLED Display 120*28 White I2C SSD1312
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
Mini Monochrome OLED Display
,Mini ssd1312 oled display
,0.63 Inch Monochrome OLED Display

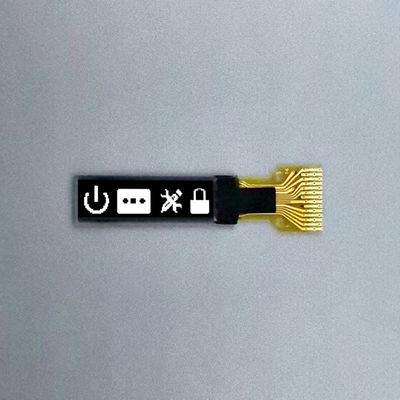

0.63 Inch 120*28 Small OLED Display White Small Display I2C SSD1312 Lcd OLED Module
LIMITO OLED Description:
This 0.63-inch diagonal PMOLED display panel, QG-2028TSWAG01, emits light on its own and does not require a backlight. It has a wide operating temperature range of -40 to 70°C and a storage temperature range of -40 to 85°C. It is designed for use in wearables and e-cigarettes with a life expectancy of over 50,000 hours. The display color can be made to white or blue based on Customizedizeder requirements.
For further Customizedizedization, LIMITO offers the option to tailor the FPC and provide integrated cover lens, touchscreen, or driver board solutions according to specific Customizedizeder requirements. This ensures a tailored and optimized display solution for individual needs.
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-2028TSWAG01 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/28 Duty |
| Number of Pixels: | 120*28 |
| Panel Size: | 21.54*6.62*1.2(mm) |
| Active Area: | 15.58*3.62 (mm) |
| Pixel Pitch: | 0.13*0.13(mm) |
| Pixel Size: | 0.11*0.11(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
