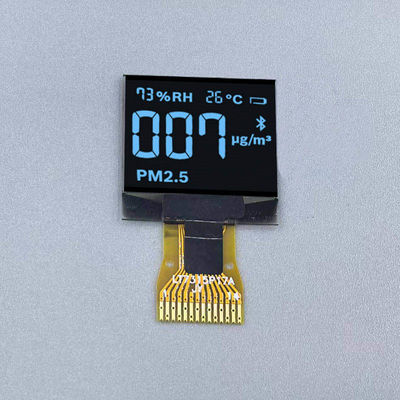

0.66 Inch OLED Display 64*48 Monochrome with ST7315 IC
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
64*48 Monochrome Graphic Display
,0.66 Inch Monochrome Graphic Display
,64*48 0.66 inch oled
0.66 Inch OLED Display 64*48 Monochrome with ST7315 IC
LIMITO OLED Description:
0.66'' OLED is a monochrome OLED display module with 68×48 dot matrix. It consists of organic compounds that emit light when an electric current is applied. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-6448TSWEG02 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/48 Duty |
| Number of Pixels: | 64*48 |
| Panel Size: | 16.5*16.2*1.23(mm) |
| Active Area: | 10.06*13.42 (mm) |
| Pixel Pitch: | 0.21*0.21(mm) |
| Pixel Size: | 0.15*0.19(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
