0.78 Inch 128x80 White OLED Monochrome SSD1317 4 Wire SPI OLED
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
0.78 Inch OLED Micro Display
,0.78 Inch Monochrome Touch Screen
,SSD1317 OLED Micro Display

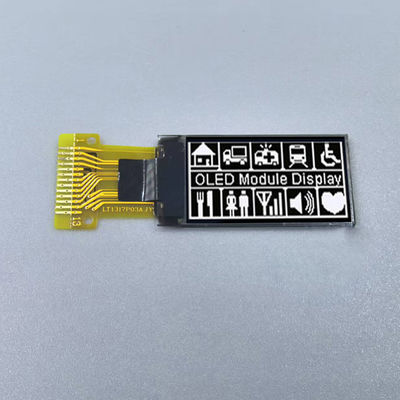

0.78 Inch 128x80 White OLED Monochrome SSD1317 4 Wire SPI OLED
LIMITO OLED Description:
QG-9616TSWGG01 is a graphic PMOLED display module with a diagonal size of 0.78 inches. It features a resolution of 80x128 individual white pixels. The module utilizes the SSD1317 controller IC, which supports communication via 4-wire serial interfaces.
Since the OLED display generates its own light, there is no need for a backlight. This unique feature results in lower power
consumption and contributes to the display's high contrast, extremely wide viewing angle, and exceptional operating temperature range.
The FPC (Flexible Printed Circuit) of the QG-9616TSWGG01 is designed with a soldering-type Flexible Printed Circuit (FPC),
eliminating the need for a separate connector. You can directly solder the FPC onto your PCB, ensuring a secure and reliable connection.
This display module can be easily controlled by various microcontroller units (MCUs) such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its versatility allows it to be integrated into a wide range of applications, including embedded systems, industrial devices, security systems, consumer electronics, medical equipment, and handheld devices.
For further Customizedizedization, LIMITO offers the option to Customizedizedize the FPC and provide integrated cover lens, touch screen, or driver board solutions according to specific Customizedizeder requirements. This ensures a tailored and optimized display solution for individual needs.
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-9616TSWGG01 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/80 Duty |
| Number of Pixels: | 128*80 |
| Panel Size: | 12.13*23.6*1.22(mm) |
| Active Area: | 9.68*17.26 (mm) |
| Pixel Pitch: | 0.135*0.12125(mm) |
| Pixel Size: | 0.115*0.10125(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
