0.87 Inch Monochrome OLED Display Industrial Grade 14 Pin IIC 128x32 SSD1312
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
0.87 Inch Monochrome OLED Display
,0.87 Inch 128x32 oled display
,Industrial Grade Monochrome OLED Display
0.87 Inch Oled 14 Pin IIC 128x32 Monochrome Lcd Display Module SSD1312
LIMITO OLED Description:

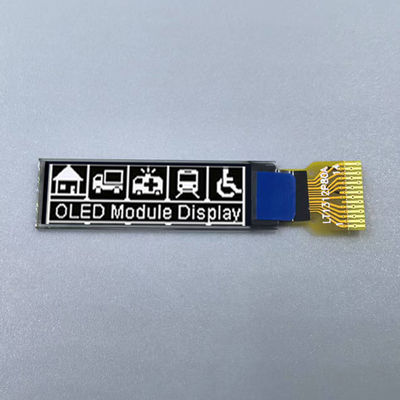

QG-2832TSWSG02 OLED Display Module is a 128x32 resolution COG graphic display, diagonal size 0.87 inch. The OLED model is designed as industrial grade which is having the slim size and dvantage of competitive price. The module is built-in with SSD1312 IC; it supports IIC interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating Current for VDD is 180μA, driving duty 1/32.
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-2832TSWSG02 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/32 Duty |
| Number of Pixels: | 128*32 |
| Panel Size: | 29*8.7*1.23(mm) |
| Active Area: | 5.324*21.356(mm) |
| Pixel Pitch: | 0.167*0.167(mm) |
| Pixel Size: | 0.147*0.147(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
