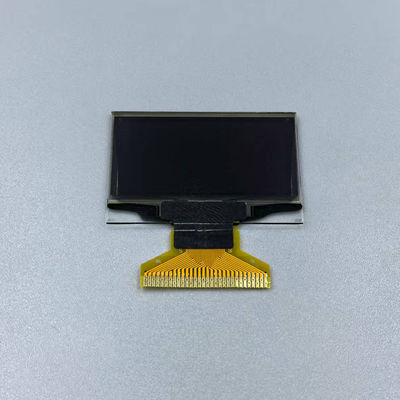

1.3 Inch Oled Displays Monochrome White SSD1106 CH1116 Parallel I2C SPI 128x64
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
SSD1106 1.3 inch oled display
,1.3 Inch ssd1106 oled
,CH1116 1.3 inch oled display
1.3 Inch White SSD1106 / CH1116 Parallel I2C SPI 128x64
LIMITO OLED Description:
The QG-2864KSWXG23, produced by LIMITO, is a versatile 1.3-inch graphic OLED display module. It presents a visually attractive display available in white or blue with a resolution of 128x64 pixels. The module employs the efficient CH1116G controller IC and supports Parallel, SPI, and I2C interfaces for seamless communication.
Operating as an OLED display, it operates without the need for a backlight, resulting in reduced power consumption. This characteristic enhances contrast and widens the viewing angle, ensuring dependable performance across various temperature conditions.
The module's FPC (Flexible Printed Circuit) features soldering connections, eliminating the necessity for a separate connector. This simplifies integration and establishes a secure connection to your PCB.
The LIMITO QG-2864KSWXG23 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This adaptability makes it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
LIMITO provides Customizedizedization options for the display solution, such as Customizedizedized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility ensures that Customizedizeders receive an optimized display solution tailored precisely to their specific needs and preferences.
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-2864KSWXG23 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 128*64 |
| Panel Size: | 34.5*23.0*1.4(mm) |
| Active Area: | 29.42*14.7(mm) |
| Pixel Pitch: | 0.23*0.23(mm) |
| Pixel Size: | 0.21*0.21(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
