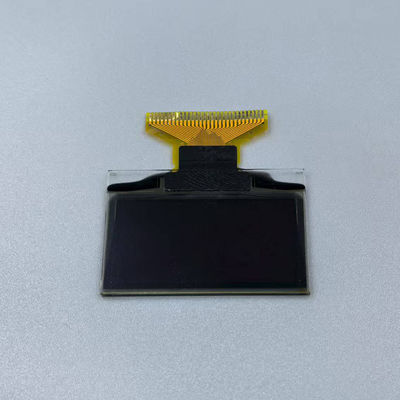

1.3 Inch Blue Monochrome OLED Display CH1116 Parallel I2C SPI 128x64 Pixels
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
1.3 Inch Monochrome OLED Display
,1.3 Inch Mono OLED Display
,Blue Monochrome OLED Display
1.3 Inch blue CH1116 Parallel I2C SPI 128x64 OLED Displays
LIMITO OLED Description:
LIMITO QG-2864KLBXG23: Your Versatile 1.3-inch OLED Display Module
Meet the LIMITO QG-2864KLBXG23, a powerful and versatile 1.3-inch graphic OLED display module. It delivers stunning visuals with a 128x64 pixel resolution, available in your choice of crisp white or vibrant blue.
This module boasts an efficient CH1116G controller IC and offers flexible connectivity with support for Parallel, SPI, and I2C interfaces, ensuring seamless integration into your projects. As an OLED display, it doesn't need a backlight, which means significantly lower power consumption. This also leads to superior contrast, true blacks, and incredibly wide viewing angles, guaranteeing reliable performance even in diverse temperature environments.
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-2864KLBXG23 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (Blue) |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 128*64 |
| Panel Size: | 34.5*23.0*1.4(mm) |
| Active Area: | 29.42*14.7(mm) |
| Pixel Pitch: | 0.23*0.23(mm) |
| Pixel Size: | 0.21*0.21(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
