0.91 Inch Oled Display 128x32 Monochrome Interface I2C SSD1306
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
SSD1306 lcd oled display
,SSD1306 oled display arduino
,0.91 Inch lcd oled display

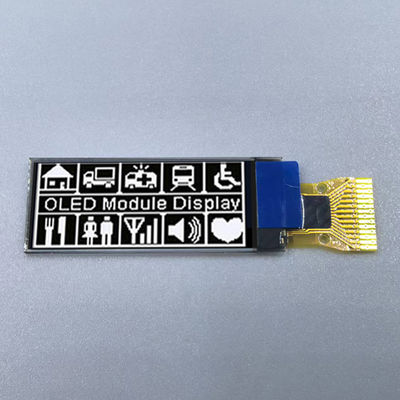

0.91 Inch 128x32 Monochrome OLED Display Module Manufacturer Support Interface I2C Driver IC SSD1306
LIMITO OLED Description:
LIMITO QG-2832TSWEG02P1 is a popular small OLED display which is made of 128x32 pixels, diagonal size 0.91 inch, it's very suitable for wearable device. QG-2832TSWEG02P1 module is built in with SSD1306 controller IC; it supports I2C interface and having 14 pins FPC pintout. As to the QG-2832TSWEG02P1 module is also built in with SSD1306 IC but it communicates via SPI interface and having 15 pins FPC pinout.
QG-2832TSWEG02P1 is a COG structure I2C OLED display, its controller is built-in voltage generation only need a single 3V power supply. This OLED supports I2C interface display module is lightweight, low power and small, this COG module is suitable for wall / meter devices, home applications, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, wearable device, etc. WEO012832F OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: |
QG-2832TSWEG02P1
|
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome(White) |
| Drive Duty: | 1/32 Duty |
| Number of Pixels: | 128x32 |
| Panel Size: |
30.0x 11.5 x 1.23 (mm)
|
|
LCM+PCB Size:
|
38x12x2.3(mm) |
| Active Area: | 22.384 x 5.584 (mm) |
| Pixel Pitch: | 0.175 x 0.175 (mm) |
| Pixel Size: |
0.159 x 0.159 (mm)
|
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
