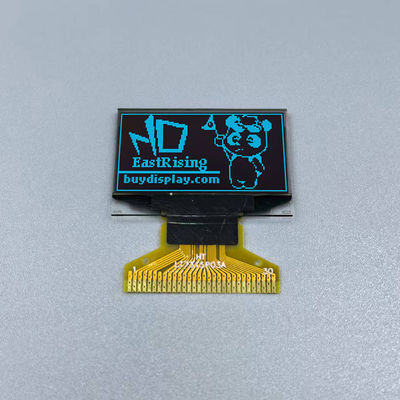

Mono OLED Display Module 128x64 Resolution 0.96 Inch
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
Transparent OLED Display Module
,0.96 Inch oled screen module
,Transparent oled screen module
Resolution 128x64 0.96'' OLED Display Module Transparent
LIMITO OLED Description:
Display Size:
Diagonal Size: 0.96 inches.
Active Area: Approximately 21.74mm x 10.86mm.
Resolution: Commonly 128x64 pixels
OLED Type:
Monochrome: Available in single colors like white, blue, or yellow.
Bicolor: Displays two colors, such as yellow and blue, split horizontally.
Driver IC:
SSD1306: The most commonly used controller for 0.96-inch OLED displays.
SH1106: Another compatible controller, typically with similar functionality.
Interface:
I2C: Default for most 0.96-inch OLED modules; uses two wires (SDA, SCL) for data communication.
SPI: Some variants support SPI for faster communication.
Power Requirements:
Voltage: Typically 3.3V or 5V (depending on the module).
Low power consumption due to the self-emissive nature of OLEDs.
Viewing Angle:
Wide viewing angles, generally up to 170°.
Contrast Ratio:
Extremely high, typically 10,000:1, ensuring crisp text and graphics.
Form Factor:
Compact and lightweight, making it suitable for space-constrained applications.
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: |
QG-2864KLBYG01P1
|
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome(Blue) |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 128 x 32 |
| Panel Size: |
26.70x 19.26x 1.4 (mm)
|
|
Module Size
|
27.50 (4) x27.80 (W)x11.54 (T) |
| Active Area: | 21.744 x 10.864 (mm) |
| Pixel Pitch: | 0.17 x 0.17 (mm) |
| Pixel Size: |
0.154 x 0.154 (mm)
|
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
