2.23 Inch OLED Display Module 128X32 Pixels Dots Cog Monochrome SSD1305
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
2.23 Inch OLED Display Module
,2.23 Inch Customized oled panel
,Monochrome OLED Display Module

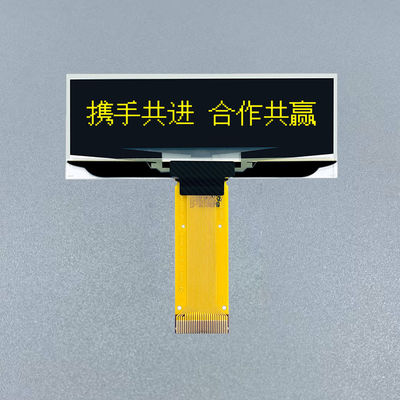

2.23'' OLED Display Module 128X32 Dots Cog Monochrome SSD1305
LIMITO OLED Description:
The 2.23'' OLED display module features a resolution of 128 x 32 dots and utilizes the SSD1305 driver, making it well-suited for various applications requiring clear visual output.
Key Features:
Screen Size: 2.23 inches
Resolution: 128 x 32 dots
Driver IC: SSD1305
Color: Monochrome (typically white or blue on black background)
Display Type: COG (Chip on Glass) design for improved performance
Low Power Consumption: Efficient for battery-powered devices
High Contrast: Excellent visibility in different lighting conditions
Compact Size: Ideal for space-limited projects
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: |
QG-2832ALBCG01P1
|
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome(Blue) |
| Drive Duty: | 1/32 Duty |
| Number of Pixels: | 128 x 32 |
| Panel Size: |
62.00 x24.00 x 2.00 (mm)
|
|
Module Size
|
66.5 x 35 x 5.15 (mm) |
| Active Area: | 55.02 x 13. 10 (mm) |
| Pixel Pitch: | 0.43 x 0.41 (mm) |
| Pixel Size: |
0.41 x 0.39 (mm)
|
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
