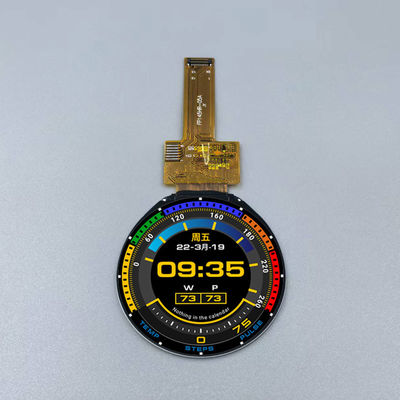

Name: 1.45 Inch Circular TFT Display 412x412 Pixels 24 PINS 450cd/㎡
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LH145R-PC01
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LH145R-PC01

Diagonal Screen Size:

1.45

Drive IC:

SPD2010

Interface:

QSPI

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

3 White LED Parallel

Brightness:

450

Highlight:

1.45 Inch Circular TFT Display

1.45 Inch round TFT screen

412x412 Pixels Circular TFT Display

Product Description

1.45 Inch Circular TFT Display 412x412 24PINS MIPI 450cd/㎡ Circle LCD Display

LIMITO IPS TFT LCD Display Description:

LH145R-PC01 is a 412RGBX412 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight

LIMITO IPS TFT LCD Display Specification:

LCD Size	1.45
Display Mode	Normally black
Resolution	412(H)RGB x412(M)
Pixel pitch	0.0897(H) x 0.0897(V)
Active area	⌀36.9564
Module size	39.36(H) x 41.53(M) x1.56 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	16.7M
Luminance(cd/m2)	450 (TYP)Cd/m2
Viewing Direction	All View
Weight	4.1g

LIMITO IPS TFT LCD Display Mechanical Drawing

LIMITO IPS TFT LCD Display Advantages:

Premium Aesthetics and Unique Form Factor: The circular design provides a modern, stylish, and distinctive look, making products stand out. This is highly desirable in consumer electronics where design differentiation is crucial.
Ideal for Wearables and Compact Devices: The size and shape are perfectly suited for smartwatches, fitness trackers, smart rings, small medical devices, and other IoT gadgets where space is at a premium and a round display enhances both functionality and user experience.
High Resolution for its Size (412x412): A 412x412 resolution on a 1.45-inch display results in a very high pixel density. This means incredibly sharp text, smooth graphics, and detailed images, leading to a premium visual experience. Compared to a 360x360 resolution, the 412x412 offers noticeably more pixels, allowing for finer details and smoother curves.
Enhanced User Experience: The high resolution and circular form factor allow for sophisticated graphical user interfaces (GUIs) that are intuitive and visually appealing, often resembling traditional watch faces or radial menus.
