Name: 2.1 Inch Circular TFT Display 480x480 Resolution MIPI Interface 30 Pin
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LH210R-IC02
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LH210R-IC02

Diagonal Screen Size:

2.1

Drive IC:

ST7701S

Interface:

MIPI

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

4 White LED Parallel

Brightness:

450

Highlight:

2.1 Inch Circular TFT Display

2.1 Inch round TFT screen

480x480 Resolution Circular TFT Display

Product Description

1.45 Inch Circular TFT Display 412x412 24PINS MIPI 450cd/M2 Circle LCD Display

LIMITO IPS TFT LCD Display Description:

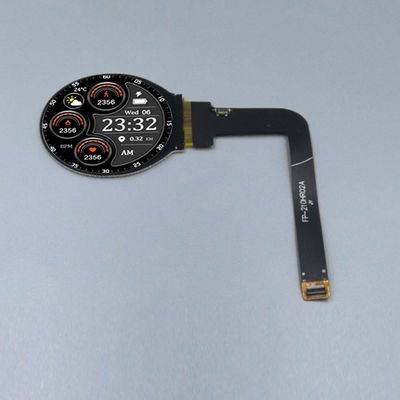

LH210R-IC02 is a 480RGBX480 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight

LIMITO IPS TFT LCD Display Specification:

LCD Size	2.1
Display Mode	Normally black
Resolution	480(H)RGB x480(M)
Pixel pitch	0.111(H) x 0.111(M)
Active area	⌀53.28
Module size	56.1 8(H) x 59.71M) x2.23 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	16.7M
Luminance(cd/m2)	450 (TYP)Cd/m2
Viewing Direction	All View
Weight	13g

LIMITO IPS TFT LCD Display Mechanical Drawing

LIMITO IPS TFT LCD Display Advantages:

Striking Aesthetics and Distinctive Design: The circular form factor is inherently modern and visually appealing, offering a significant differentiator over traditional rectangular displays. At 2.1 inches, it's large enough to be a focal point of a device.
Enhanced User Experience with Larger Screen: Compared to smaller circular displays (e.g., 1.39" or 1.45"), 2.1 inches offers substantially more screen real estate. This allows for:
More Information Density: Displaying more text, icons, and graphical elements simultaneously.
Easier Readability: Larger fonts and clearer visuals reduce eye strain.
Improved Touch Interaction: More space for touch targets, making navigation and interaction more comfortable and precise, especially on a smartwatch or control panel.
High Resolution for its Size (480x480): A 480x480 resolution on a 2.1-inch display translates to a very high pixel density (PPI). This results in:
Exceptional Sharpness: Text is crisp, and graphics are smooth with no visible pixelation.
Detailed Imagery: Enables the display of intricate details in photos, icons, and Customizedized watch faces.
Premium Visuals: Contributes significantly to the perceived quality and sophistication of the device.
Ideal for Advanced Wearables and Smart Devices: This size and resolution are perfect for:
High-End Smartwatches: Allowing for rich watch faces, comprehensive notification displays, and detailed app interfaces.
Smart Home Control Panels: Providing an intuitive and aesthetically pleasing interface for managing home automation.
Industrial/Medical Devices: Where clear data visualization and a modern interface are crucial.
Unique IoT Gadgets: Enabling innovative product designs.
