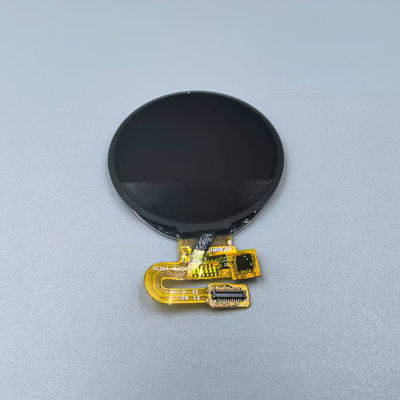

Customized TFT Touch Display 1.32 Inch Small TFT Lcd Module 400 Brightness
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
Detail Information
Place of Origin
China
Brand Name
Limito
Certification
RoSH, Reach
Model Number
LH132R-IC46-TP
Diagonal Screen Size:
1.32
Drive IC:
GC9c01
Interface:
I2C
Operating Temp:
-10℃~ +60℃
Storage Temp:
-20℃~+ 70℃
Backlight:
2 White LED Parallel
Brightness:
400
Highlight:
Customized TFT Touch Display
,Customized TFT lcd touch screen
,1.32 Inch TFT Touch Display
Product Description
Customizedized TFT LCD 1.32 Inch Small Touch TFT Display Lcd Module
LIMITO IPS TFT LCD Display Description:
LH132R-IC46-TP is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight and a CTP unit.
LIMITO IPS TFT LCD Display Specification:
|
LCD Size |
1.32 |
|
Display Mode |
Normally black |
|
Resolution |
360(H)RGB x360(V) |
|
Pixel pitch |
0.093(H) x 0.093(V) |
|
Active area |
⌀33.48 |
|
Module size |
38.7(H) x38.85(V) x3.34 (D) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display Colors |
262K |
|
Luminance(cd/m2) |
300 (TYP)Cd/m2 |
|
Viewing Direction |
All View
|
|
Weight |
TBD |
LIMITO IPS TFT LCD Display Mechanical Drawing
