3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape
| MOQ: | 10pcs |
| Price: | Negotiable |
| Standard Packaging: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Period: | 3-5days |
| Payment Method: | T/T, Paypal |
| Supply Capacity: | 7kk/M |
Detail Information
Place of Origin
China
Brand Name
Limito
Certification
RoSH, Reach
Model Number
LHS395KN-IC01F3
Diagonal Screen Size:
3.95
Drive IC:
FT5446U
Interface:
I2C
Operating Temp:
-20℃~ +60℃
Storage Temp:
-30℃~+ 75℃
Backlight:
8 White LED Parallel
Brightness:
250
Highlight:
3.95 Inch TFT Touch Display
,3.95 Inch Lcd TFT Display
,Square TFT Touch Display
Product Description

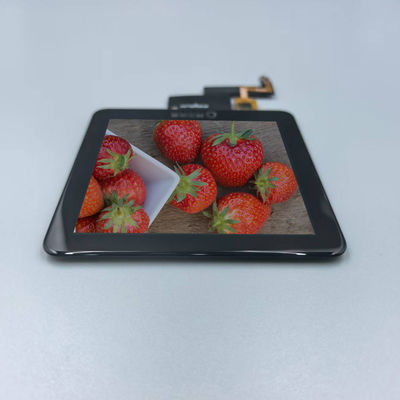

480x480 Dot Lcd 3.95" Touchscreen TFT Display Square Shape TFT Lcd Module
LIMITO IPS TFT LCD Display Description:
LHS395KN-IC01F3 is a 480RGBX480 dot-matrix TFT LCD module. This module is composed ofa TFT
LCD Panel, driver ICs, FPC, a Backlight and a CTP unit
LIMITO IPS TFT LCD Display Specification:
|
LCD Size |
3.95 |
|
Display Mode |
Normally black |
|
Resolution |
480(H)RGB x480(V) |
|
Pixel pitch |
0.1497(H) x0.1462 (M) |
|
Active area |
71.856(H)x 70. 176(V)
|
|
Module size |
78.98(H) x 74.83(V) x2.14 (D) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display Colors |
262K |
|
Luminance(cd/m2) |
250 (TYP)Cd/m2 |
|
Viewing Direction |
All View
|
|
Weight |
TBD |
LIMITO IPS TFT LCD Display Mechanical Drawing
