Name: 2.0 Inch IPS TFT Display 240*320 Free View Angle
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LHS200KP-IF05
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LHS200KP-IF05

Diagonal Screen Size:

2.0

Drive IC:

ST7789P3

Interface:

8Bit 8080 MCU & 4 Line SPI

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

3 White LED

Brightness:

400

Highlight:

2.0 Inch IPS TFT Display

2.0 Inch TFT display ips

Versatile IPS TFT Display

Product Description

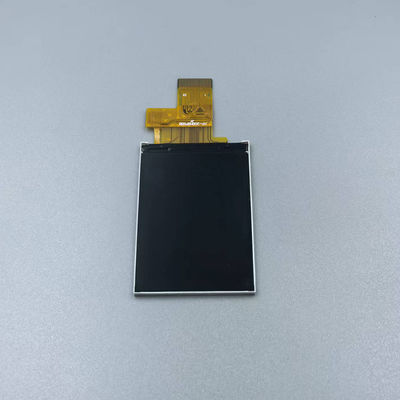

2.0 Inch 240*320 TFT LCD Module Screen Free View Angle

LIMITO IPS TFT LCD Display Description:

LHS200KP-IF05 is a 240RGBX320 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size	2.0
Display Mode	Normally black
Resolution	240(H)RGB x320(V)
Pixel pitch	0.1275(H) x 0.1275(V)
Active area	30.6(H) x 40.8(V) mm
Module size	34.6(H) x 47.8(M) x2.05(D) mm
Pixel arrangement	RGB Vertical stripe
Display Colors	262K
Luminance(cd/m2)	400 (TYP)Cd/m2
Viewing Direction	All View
Weight	7.9g

LIMITO IPS TFT LCD Display Mechanical Drawing

LIMITO IPS TFT LCD Display Advantages:

Advantages of 2.0 Inch 240x320 LCD TFT Transmissive IPS Panel Module

High Resolution: With a resolution of 240x320, this display offers sharp and detailed images, making it suitable for various applications.
IPS Technology: The In-Plane Switching (IPS) panel provides wide viewing angles, ensuring consistent color and brightness from different perspectives.
Transmissive Design: The transmissive nature of the display enhances visibility in well-lit environments, making it ideal for outdoor applications.
Compact Size: At 2.0 inches, the display is compact and lightweight, perfect for portable devices such as smartphones, wearables, and handheld gadgets.
Vibrant Color Reproduction: The IPS technology ensures vibrant and accurate color representation, improving the overall user experience.
Free Viewing Angle: The display maintains image quality and color consistency from various angles, allowing for flexible mounting options in devices.
Low Power Consumption: Designed for energy efficiency, making it suitable for battery-operated devices and extending operational life.
Versatile Applications: Ideal for a wide range of uses, including consumer electronics, medical devices, and industrial controls.
Robust Performance: Built to withstand different environments, ensuring reliable operation in various applications.
