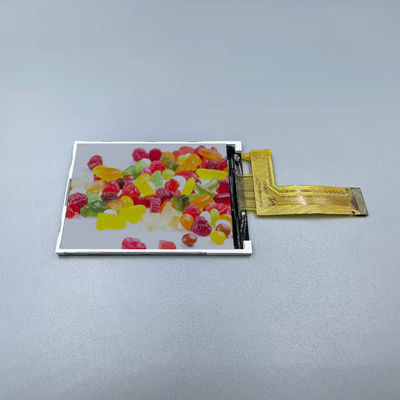

Name: 2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LBS280KP-IG01
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LBS280KP-IG01

Diagonal Screen Size:

2.8

Drive IC:

ST7789P3

Interface:

4 Line SPI

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

4 White LED Parallel

Brightness:

300

Highlight:

2.8 Inch spi TFT display

2.8 Inch TFT Display Spi

240*320 spi TFT display

Product Description

2.4 Inch TFT LCD Module ST7789 SPI interface with a 350cd/m2 brightness

LIMITO IPS TFT LCD Display Description:

LBS280KP-IG01 is a 240RGBX320 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size	2.8
Display Mode	Normally black
Resolution	240(H)RGB x320(V)
Pixel pitch	0.18(H) x 0.18(M)
Active area	43.2(H) X 57.6(M)
Module size	50.0(H) x 69.2(V) x2.25 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	262K
Luminance(cd/m2)	300 (TYP)Cd/m2
Viewing Direction	All View
Weight	12.6g

LIMITO IPS TFT LCD Display Mechanical Drawing

LIMITO IPS TFT LCD Display Advantages:

Advantages of 2.8 Inch SPI Serial TFT LCD Touch Screen Module (Driver IC ST7789P3, 240x320)

Touch Functionality: The integrated touch screen allows for intuitive user interaction, enabling gestures and direct manipulation of on-screen elements.
High Resolution: With a resolution of 240x320, this display provides sharp and clear visuals, enhancing the overall user experience.
SPI Interface: The SPI serial interface facilitates fast data transmission and easy integration with microcontrollers, streamlining the development process.
Vibrant Color Display: TFT technology ensures bright, vivid colors, making graphics and text more engaging and easier to read.
Wide Viewing Angles: The display maintains image quality and color consistency from various angles, allowing for flexible device design and placement.
Compact Size: At 2.8 inches, the module is small and lightweight, making it suitable for portable devices and applications with limited space.
Low Power Consumption: The module is designed for energy efficiency, making it ideal for battery-powered devices and extending operational life.
Versatile Applications: Suitable for a variety of uses, including consumer electronics, industrial controls, medical devices, and IoT applications.
Durable Design: Built to withstand various environmental conditions, ensuring reliable performance in different settings.
Easy to Program: The ST7789P3 driver IC allows for straightforward programming and Customizedizedization, making it accessible for developers of varying skill levels.
