Name: 5.46 Inch IPS TFT Display 720*1280 MIPI Interface Display
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LHI546TA-IF01
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LHI546TA-IF01

Diagonal Screen Size:

5.46

Drive IC:

ILI9881C

Interface:

MIPI 2Lane

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

15 White LED Serial

Brightness:

330

Highlight:

5.46 Inch IPS TFT Display

5.46 Inch TFT display ips

IPS TFT Display 720*1280

Product Description

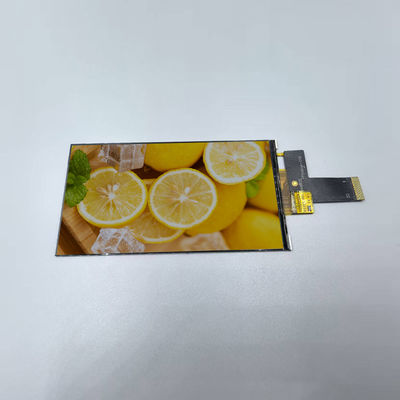

5.46 Inch TFT Lcd 720*1280 Resolution MIPI Interface Display

LIMITO IPS TFT LCD Display Description:

LHI546TA-IF01 is a 720RGBX1280 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size	5.46
Display Mode	Normally black
Resolution	720(H)RGB x1280(V)
Pixel pitch	0.0945(H) x 0.0945(V)
Active area	68.04(H) x 120.96(V)
Module size	70.64(H) X 129.21(V) x1.7 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	16.7M
Luminance(cd/m2)	330 (TYP)Cd/m2
Viewing Direction	All View
Weight	33g

LIMITO IPS TFT LCD Display Mechanical Drawing

LIMITO IPS TFT LCD Display Advantages:

Vibrant Color Reproduction: TFT LCDs are known for their ability to produce a wide spectrum of vibrant and accurate colors, essential for a rich visual experience.
High Brightness: TFT LCDs can achieve high brightness levels, making them legible in various lighting conditions, including moderately bright outdoor environments.
Cost-Effective Manufacturing: TFT LCD technology is mature and relatively cost-effective to produce at scale, offering a good balance of performance and price point.
Long Lifespan: Compared to some other display technologies, TFT LCDs generally have a long operational lifespan.
