Name: 0.99 Inch Circular TFT Module 550cd/㎡ GC9107 SPI 128RGBx115 TFT Screen Display
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LB099R-PF01
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LB099R-PF01

Diagonal Screen Size:

0.99

Drive IC:

GC9107

Interface:

4 Line SPI

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

2 White LED

Brightness:

550

Highlight:

0.99 Inch Circular TFT Module

0.99 Inch circular lcd module

128RGBx115 circular lcd module

Product Description

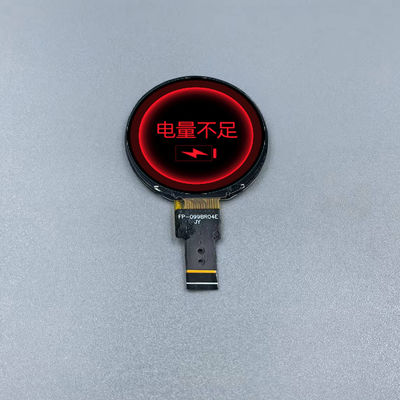

0.99" 550cd/㎡ GC9107 SPI 128RGBx115 TFT Screen Display LCD Module Circular Display

LIMITO IPS TFT LCD Display Description:

LB099R-PF01 is a 128RGBX115 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size	0.99
Display Mode	Normally black
Resolution	128(H)RGB x115(V)
Pixel pitch	0.190(H) X 0.190(V)
Active area	24.36(H) X 21.89(V)
Module size	26.71(H) x 26.22(V)x1.86 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	262K
Luminance(cd/m2)	550 (TYP)Cd/m2
Viewing Direction	All View
Weight	TBD

LIMITO IPS TFT LCD Display Mechanical Drawing

LIMITO IPS TFT LCD Display Advantages:

Compact Size: At 0.99 inches, this display is ideal for small devices, making it perfect for wearables and portable electronics.
High Brightness: With a brightness of 550 cd/m², it ensures excellent visibility in various lighting conditions, enhancing user experience outdoors and indoors.
High Resolution: The 128 RGB x 115 resolution provides clear and vibrant images, making it suitable for detailed graphics and text.
SPI Interface: The SPI interface allows for fast data transfer, ensuring smooth updates and responsiveness in applications.
Wide Viewing Angles: The display maintains color accuracy and brightness from multiple angles, allowing for flexible positioning.
Low Power Consumption: Designed for energy efficiency, it is suitable for battery-operated devices, helping to extend battery life.
Durable Design: Built to withstand daily use, it is resilient to environmental factors, ensuring long-term reliability.
Easy Integration: Compatible with various microcontrollers, simplifying the development process for engineers and hobbyists.
