Name: 2.76 Inch 480x480 Circular TFT Display With High Speed MIPI Interface
Brand: Shenzhen Limito Technology Co. Ltd.
SKU: LBS276R-IC01
Availability: InStock

MOQ:	10pcs
Price:	Negotiable
Standard Packaging:	Cartons, Capboard, EPE, Blister Tray.
Delivery Period:	3-5days
Payment Method:	T/T, Paypal
Supply Capacity:	7kk/M

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Limito

Certification

RoSH, Reach

Model Number

LBS276R-IC01

Diagonal Screen Size:

2.76

Drive IC:

ST7701S

Interface:

MIPI 2Lane

Operating Temp:

-20℃~ + 70℃

Storage Temp:

-30℃~+ 80℃

Backlight:

4 White LED Parallel

Brightness:

450

Highlight:

2.76 Inch circular TFT display

2.76 Inch Round IPS Display

480x480 circular TFT display

Product Description

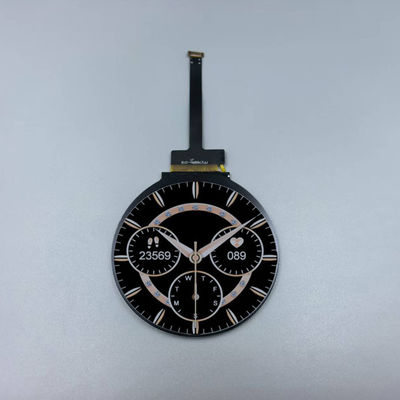

2.76 Inch 480x480 circular TFT display With High Speed MIPI Interface

LIMITO Circular TFT Display Description:

LBS276R-IC01 is a 480RGBX480 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backight.

LIMITO Circular TFT Display Specification:

LCD Size	2.76
Display Mode	Normally black
Resolution	480(H)RGB x480(V)
Pixel pitch	0.1461(H) x 0.1461(M)
Active area	⌀70.128
Module size	73.03(H) x 76.48(V) x2.26 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	16.7M
Luminance(cd/m2)	450 (TYP)Cd/m2
Viewing Direction	All View
Weight	21g

LIMITO Circular TFT Display Mechanical Drawing

LIMITO Circular TFT Display Advantages:

Compact Design: The circular form factor allows for seamless integration into smartwatch designs, providing a modern and stylish look.
High Resolution: With a high pixel density, the display ensures sharp and vibrant visuals, enhancing the user experience with clear text and graphics.
MIPI Interface: The high-speed MIPI (Mobile Industry Processor Interface) allows for fast data transfer rates, ensuring smooth and responsive touch interactions.
Low Power Consumption: Optimized for energy efficiency, the display helps extend battery life, a critical factor for wearable devices.
Wide Viewing Angles: The TFT technology offers excellent color reproduction and wide viewing angles, making it easy to see information from various positions.
Durability: Designed to withstand everyday wear and tear, the display can support various environmental conditions, enhancing its longevity.
Customizedizedization Options: Manufacturers can Customizedizedize the display settings and features to meet specific application needs, providing flexibility in design.
Compatibility: The MIPI interface ensures compatibility with a wide range of processors and systems, facilitating easier integration into existing designs.
